Choosing the wrong material can make your display fail. Imagine your products crashing to the floor in a busy store. Understanding the difference between cardboard and corrugate is key.
Use corrugate for heavy products and large, free-standing displays like floor stands. Use cardboard for lightweight items and smaller displays like counter units or shelf-ready packaging. The internal wavy structure of corrugate provides the strength that simple cardboard lacks for bigger jobs.
It sounds simple, right? But in my years of making displays, I've seen this mix-up cause major headaches for brands. Getting the terminology right is the first step to a successful display that not only looks great but also performs perfectly in the store. Let's break down exactly what each material is, so you can choose with confidence for your next project.
What is Cardboard?
You hear "cardboard" all the time. But this common term can cause costly mix-ups. Don't let a simple mistake ruin your display project from the start.
Cardboard is a heavy-duty paper stock, also known as paperboard. It is a single, thick layer of paper. Think of a cereal box or a business card, not a shipping box. It has no wavy middle layer.
When we in the display industry talk about cardboard, we are almost always referring to paperboard. It's essentially a thick sheet of paper. While it is thicker and stiffer than the paper in your office printer, it doesn't have the complex structure needed for heavy lifting. I remember a client who wanted to create a small counter display for lightweight lip balms. Paperboard was the perfect choice. It gave them a super smooth, high-quality printing surface that made their graphics pop, and it was more than strong enough to hold a few dozen small tubes. It's great for applications where appearance is critical and structural strength is not the main concern.
Common Uses for "Cardboard" (Paperboard)
| Display/Packaging Type | Why Paperboard Works Well |
|---|---|
| Cereal Boxes | Lightweight contents, needs good graphics. |
| Small Product Boxes | For cosmetics, electronics, etc. |
| Shelf-Ready Packaging | Holds small items, needs to look good on the shelf. |
| Small Counter Displays | Holds lightweight products, sits on a sturdy counter. |
What is Corrugate?
People often call shipping boxes "cardboard." This mistake leads to weak displays. You need to know the right term to get the strength you need for bigger projects.
Corrugated material is what most people mean when they say "cardboard box." It has at least three layers: two flat outer sheets, called linerboards, with a wavy, fluted layer sandwiched in between.
This three-layer structure is an engineering marvel. The wavy middle layer, called the medium or flute, is the hero. It creates a series of connected arches, which are incredibly strong and resistant to pressure from all directions. This design gives corrugated board its signature strength and rigidity without making it heavy. It's this strength-to-weight ratio that makes it the go-to material for almost all shipping boxes and most retail floor displays. The air pockets trapped in the flutes also provide excellent cushioning, protecting the contents from bumps and drops during shipping and in a busy retail environment. It’s the material we rely on for displays that need to stand on their own and hold significant weight.
The Engineering Behind Corrugate
The genius of corrugate is its structure. Think of a bridge. The arches in the flute distribute weight across the entire board. This prevents it from bending or collapsing under pressure. When you stand a corrugated sheet on its edge, the flutes act like columns, giving it amazing stacking strength. This is why you can stack heavy boxes on top of each other in a warehouse. For a retail display, this means it can hold stacks of your product without buckling.

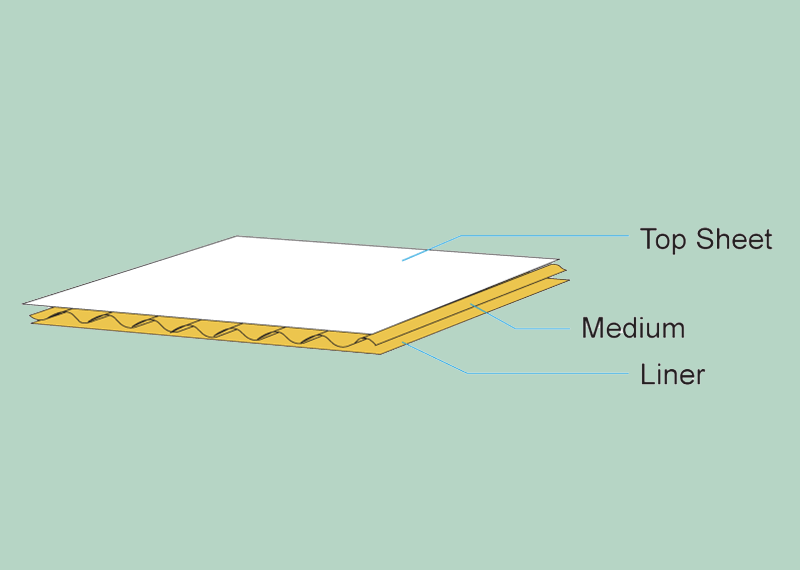

What is a Corrugated Sheet Made Of?
Ordering the wrong material composition can kill your budget. It's confusing with terms like liner and medium. Let's make it simple so you get it right.
A corrugated sheet is made of linerboard and medium. The linerboard is the flat paper that makes up the outer surfaces. The medium is the wavy, "fluted" paper that is sandwiched between the liners.
Let's look at the parts of a standard single-wall corrugated sheet. You have a top liner, a bottom liner, and the fluted medium in the middle. The liners provide a smooth surface, which is great for printing. They also add to the board's rigidity and protect the flutes from damage. The medium is where the real strength comes from. It's designed to resist being crushed and provides the cushioning effect. We can use different paper weights and types for both the liner and the medium. For a display that needs to look premium, we might use a white, clay-coated liner for vibrant printing. For a display that needs to hold a lot of weight, we would use heavier, stronger paper for both the liners and the medium. Getting this combination right is our job as designers.
Components of a Corrugated Sheet
| Component | Description | Primary Function |
|---|---|---|
| Top Liner | The flat paper on the outside of the board. | Provides a smooth printing surface; adds strength. |
| Medium (Flute) | The wavy paper in the middle. | Provides the main strength, cushioning, and rigidity. |
| Bottom Liner | The flat paper on the inside of the board. | Provides stability and protects the flute. |

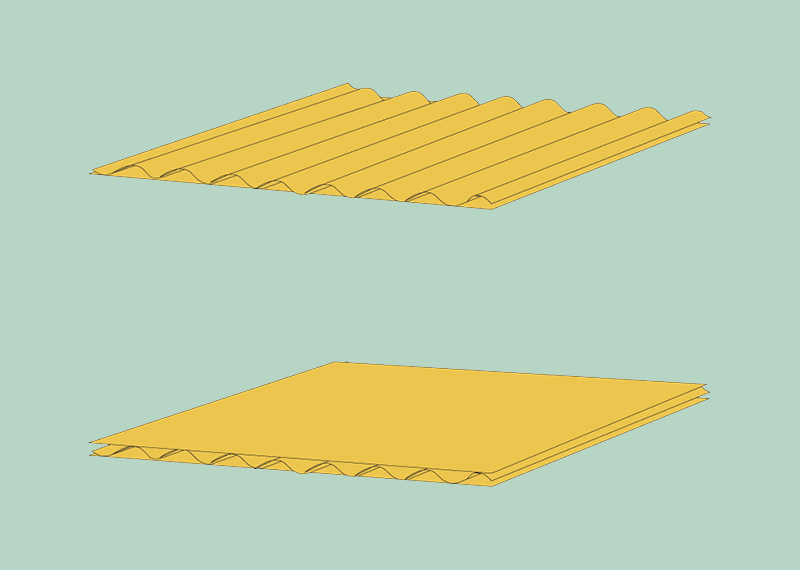

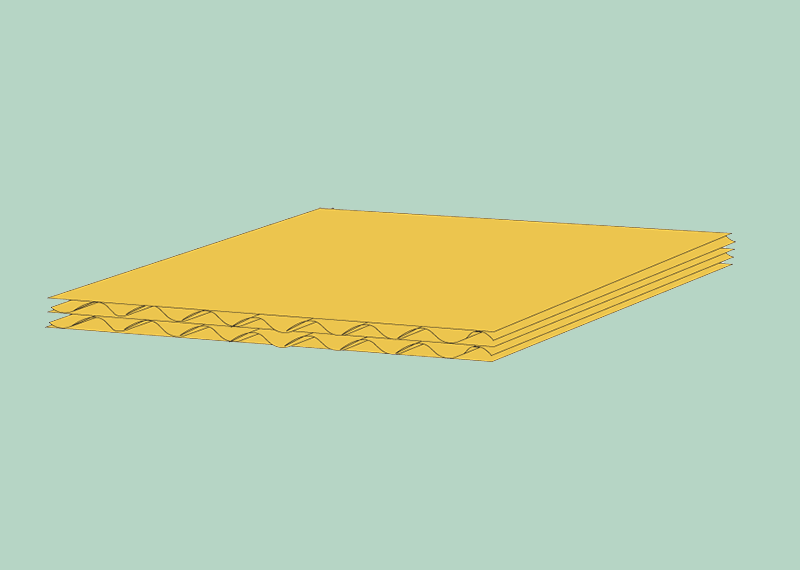

Different Corrugated Board Styles
Choosing a board style feels complex. Single wall? Double wall? Pick the wrong one, and your display could collapse. We can simplify this for you.
The main styles are Single Face, Single Wall, Double Wall, and Triple Wall. The "wall" refers to the number of fluted layers. Most retail displays use Single Wall or Double Wall board.
Understanding the "walls" is easy. Each wall is a combination of a fluted medium and a liner. A single wall board has one fluted layer between two liners. This is the most common style we use for many floor displays and dump bins. When a customer needs a display to hold something very heavy, like bottles of beverages or bags of pet food, we step up to a double wall board. This style has two fluted layers and three liners, making it much stronger and more rigid. I once designed a pallet display for a client selling large bags of soil. A single wall board would have buckled instantly. We used a heavy-duty double wall board, and the display held up perfectly for the entire promotion. Triple wall exists, but it's mostly for industrial crates, not retail displays.
Understanding the Walls
| Board Style | Layer Structure | Common Use in Retail |
|---|---|---|
| Single Face | 1 Medium + 1 Liner | Protective wrapping, not for structural displays. |
| Single Wall | 1 Medium + 2 Liners | The most common style for floor displays, dump bins. |
| Double Wall | 2 Mediums + 3 Liners | Heavy-duty displays, pallet displays, endcaps. |
| Triple Wall | 3 Mediums + 4 Liners | Extremely rare in retail; used for industrial shipping. |
Corrugate Flutes for Retail Displays
Flute profiles like A, B, C, and E sound like a secret code. Choosing the wrong flute means your display won't look or perform right. Let's decode this for you.
B, C, and E flutes are most common for retail displays. E-flute offers a superior printing surface for high-graphics displays. B-flute provides good strength. BC-flute combines both for heavy-duty floor displays.
Decoding Flute Profiles for Displays
| Flute Type | Key Characteristic | Best Use in Retail Displays |
|---|---|---|
| E-Flute | Very thin, excellent print surface. | High-graphics counter displays, shelf-ready packaging. |
| B-Flute | Good balance of strength and printability. | General purpose floor displays, dump bins, standees. |
| C-Flute | Good stacking strength and cushioning. | Often used in shipping boxes, sometimes for simple displays. |
| BC-Flute | Double wall combo of B and C flutes. | Heavy-duty floor displays, pallet displays, power wings. |
Differences Between Cardboard and Corrugated
Confusing these two materials is a common and costly mistake. It can lead to a display that collapses or looks cheap. Let's clear up the confusion for good.
The key difference is structure. Cardboard (paperboard) is a single, thick layer of solid paper. Corrugated material is an engineered product with multiple layers, including a wavy "fluted" layer that provides significant strength and cushioning.
Think of it this way: cardboard is a sheet, but corrugate is a structure. This structural difference is everything. A paperboard sheet can be bent and creased easily. A corrugated sheet resists bending because of the internal truss system created by the flutes. This is why you can't ship a heavy item in a cereal box, but you can ship it in a corrugated box. In the world of retail displays, this means paperboard is for looking good while holding light things, and corrugate is for looking good while holding heavy things and withstanding the chaos of a retail store floor. Understanding this fundamental difference is the most important lesson for any brand manager ordering a custom display. It affects strength, durability, cost, and ultimately, the success of your in-store promotion.
Head-to-Head Comparison
| Feature | "Cardboard" (Paperboard) | Corrugated Board |
|---|---|---|
| Structure | Single layer of pressed paper pulp. | 3+ layers: two flat liners and a wavy medium. |
| Strength | Low. Bends and creases easily. | High. Engineered for strength and crush resistance. |
| Weight Capacity | Very low. For lightweight items only. | High. Can be engineered to hold very heavy products. |
| Printability | Excellent. Very smooth surface for graphics. | Good to Excellent. E-flute offers a premium surface. |
| Common Use | Small product boxes, lightweight counter displays. | Floor displays, pallet displays, shipping boxes. |
How to Choose for POP Displays?
Making the final choice can be stressful. You worry about overspending on strength you don't need, or under-spending and risking failure. Here's a simple guide.
Choose based on product weight and display size. Use cardboard (paperboard) for light products on small displays like counter units. Use corrugated for heavy products or large, free-standing floor displays that need to be durable.
Your decision really comes down to two questions: How much does my product weigh? And where will the display live in the store? I always walk my clients through this checklist. If your product is light and the display is small and sits on a counter or shelf, paperboard is often a great, cost-effective choice. But the moment the display needs to stand on its own on the floor, or hold anything with significant weight, you must use corrugate. It's not worth the risk. A collapsed display is not just a loss of product; it's a danger to shoppers and a huge blow to your brand's image. Don't try to save a few cents by using paperboard where corrugate is needed.
Your Decision Checklist
When to Use "Cardboard" (Paperboard)
- Product is very lightweight: cosmetics, trading cards, candy bars.
- Display is small: It will sit on a counter, shelf, or hang from a peg.
- Examples: Small Counter Displays (PDQs), Shelf-Ready Packaging (SRPs), Header Cards.
When to Use Corrugated Board
- Product has weight: beverages, canned goods, electronics, bags of pet food.
- Display is large or free-standing: It needs to support itself and product weight on the store floor.
- Examples: Floor Standing Display Units (FSDUs), Pallet Displays, Endcap Displays, Dump Bins, Power Wings (Sidekicks).
Conclusion
Choosing is simple: cardboard for light, small displays and corrugated for heavy, large ones. Knowing this difference ensures your retail display is a success from the ground up.
