Corrugated Board Grades Explained: Which Material Is Best for Your Retail Display?

I have seen strong display ideas fail because the board was wrong. The graphics looked great, but shelves bent, products dropped, and retailers complained.

The best corrugated board for a retail display depends on product weight, display type, shipping conditions, retailer rules, and print needs.¹ I usually select E or B flute for light displays, EB or C flute for floor displays, and BC flute or double-wall board for heavy pallet displays.

I do not start a retail display project by asking which board is cheapest. I start by asking what the display must survive. I look at the product weight, the shelf span, the store environment, and the transport route. Then I match the board grade to the real job.

If you choose board only by thickness or price, you may save a little at the start and lose much more later. If you understand board construction, flute profiles, liner grades, and strength tests, you can make a safer and smarter choice. Let me walk through the way I judge corrugated board in real display projects.

What Is Corrugated Board Made Of?

I often meet brand teams that care deeply about color and shape, but they rarely ask what is inside the board. That can create real risk.

Corrugated board is made from liners and fluting.² The liners give surface strength and print support. The fluting gives stiffness, cushioning, and vertical load support. I select the full board structure based on display weight, use, and shipping stress.

Outer Liner, Fluting, and Inner Liner

I see corrugated board as an engineered sandwich, not just paper. The outer liner is the face that customers see. It supports printing, color, and surface strength. The corrugated medium is the wave-shaped layer inside the board. It creates air space and gives the board its compression strength. The inner liner holds the structure together and adds extra support.

I use this structure because it gives a very good strength-to-weight ratio. A paper display must be light enough to ship and move, but it must also carry products safely. That balance depends on how the liners and flutes work together.

Component	What I Look For	Why It Matters In Retail Displays
Outer liner	Smoothness, strength, print surface	It affects graphics and first impression
Corrugated medium	Flute height and crush resistance	It affects load support and cushioning
Inner liner	Stability and bonding strength	It affects structure and shelf life
Adhesive bonding	Flat bonding and no delamination	It affects long-term safety

Common Board Structures

I usually use single-wall or double-wall corrugated board for retail displays. Single-wall board has two liners and one fluted medium. It works well for counter displays, light floor displays, and shelf-ready packaging. Double-wall board has three liners and two fluted mediums. I use it when the display carries heavier goods or when the retailer needs better transport performance.

Triple-wall board is strong, but I rarely use it for normal retail displays. It fits industrial packing more than point-of-sale display work. For most brand campaigns, the best answer is not the thickest board. The best answer is the board that supports the display without wasting cost or space.

How Do Linerboard Grades Affect Display Strength and Print Quality?

I have learned that two boards with the same flute can perform very differently. The liner often explains the difference.

Linerboard grade affects strength, moisture resistance, print quality, and cost. I use kraft liner for strength, test liner for cost control, white top liner for better graphics, and clay-coated liner for premium print results.

Kraft Liner, Test Liner, White Top, and Clay-Coated Liner

I choose linerboard based on both structure and brand image. Kraft liner is made mainly from virgin fiber.³ It has higher tear resistance and better moisture resistance. I often use kraft liner for Costco, Sam’s Club, pallet displays, and heavier retail programs. It is not always the cheapest option, but it gives me more safety when the load is high.

Test liner is made mostly from recycled fiber. I use it when the product is light, the campaign is short, and the budget is tight. It can work very well, but I do not treat it as equal to kraft liner for heavy displays.

White top liner gives a cleaner printable surface. It helps color look brighter and more controlled. Clay-coated liner gives an even smoother surface, so I use it for premium POS displays and brand launch displays where graphic quality is critical.

Liner Type	Main Benefit	Best Use	Main Concern
Kraft liner	High strength	Heavy displays and club stores	Higher cost
Test liner	Lower cost	Temporary campaigns	Lower moisture resistance
White top liner	Better print surface	Cosmetics and electronics	Needs correct print control
Clay-coated liner	Premium graphics	Brand launch displays	Higher material cost

How I Match Liner To Project Goals

I always ask one simple question before choosing liner: what failure would hurt the project most? If the main risk is product weight, I choose a stronger liner. If the main risk is poor shelf appearance, I choose a better print surface. If the main risk is budget, I may use test liner, but I strengthen the structure in other ways.

I also consider the retail channel. A warehouse club display faces a harsher journey than a small counter display. It may be packed, stacked, shipped, stored, moved by forklift, and replenished many times. In that case, I do not rely on appearance alone. I combine stronger liner with the right flute and proper testing. That is how I avoid weak shelves and bowed panels.

Which Corrugated Flute Is Best for Retail Displays?

I have seen many buyers ask for “thicker paper” when they really need the right flute. Thickness helps, but it is not the full answer.

E flute gives better print quality for light displays.⁴ B flute gives a good balance of strength and appearance. C flute supports stronger floor displays. EB flute combines print quality and strength. BC flute works best for heavy pallet and club-store displays.

Single-Wall Flutes

I use E flute when the display needs a smooth surface and light structure. It is common for cosmetics, electronics accessories, and premium small displays. E flute is thin, usually around 1.2 to 1.8 mm, so it prints well and folds cleanly. It is not my first choice for heavy shelves.

I use B flute when I need a stronger single-wall option. It is usually around 2.5 to 3.0 mm. It has good puncture resistance and good structure. It works for counter displays, shelf-ready packaging, and many floor displays.

I use C flute when the display needs stronger compression performance. It is usually around 3.5 to 4.0 mm. It works well for floor displays and dump bins, especially when the product has more weight.

Flute	Approx. Thickness	Strength Level	Print Quality	Common Display Use
E flute	1.2–1.8 mm	Low to medium	High	Cosmetics and electronics
B flute	2.5–3.0 mm	Medium	Good	Counter and floor displays
C flute	3.5–4.0 mm	Medium to high	Medium	Floor displays and dump bins

Double-Wall Flutes

I use EB flute when I need both strong structure and good print appearance. EB combines E flute and B flute. It is usually around 4.5 to 5.0 mm. The E flute side can support better graphics, and the B flute side adds strength. I like EB for premium floor displays, large promotional displays, and many club-store projects.

I use BC flute when load capacity matters more than fine print surface. BC combines B flute and C flute. It is usually around 6.0 to 7.0 mm. It has excellent stacking strength and heavy load capacity. I often use it for pallet displays, beverage displays, pet food displays, and warehouse club programs.

I rarely choose A flute for retail displays because the surface is not ideal for high-quality graphics. It is better for shipping cartons and industrial packaging.

Double-Wall Flute	Main Advantage	Best Use	My Common Reason For Choosing It
EB flute	Strength plus better print	Premium floor displays	I need both shelf safety and good branding
BC flute	Heavy load capacity	Pallet and club-store displays	I need strong stacking and transport performance

How Should Product Weight Drive Board Selection?

I have watched displays collapse not because the design was ugly, but because nobody calculated the real product load. Weight must come first.

Product weight should drive board selection before graphics, price, or flute preference.⁵ I match light products with E or B flute, medium products with B or C flute, and heavy products with BC flute or double-wall construction.

Light, Medium, and Heavy Product Groups

I separate products into weight groups before I choose board. Light products include cosmetics, phone accessories, small OTC goods, and light packaged items. These can often use E flute or B flute if the shelf span is short and the campaign time is limited.

Medium-weight products include packaged foods, household goods, small cleaning products, and many daily-use items. I often choose B flute or C flute for these projects. I may also use EB flute if the display is tall or the retailer has stricter requirements.

Heavy products include beverages, pet food, bulk warehouse-club packs, tools, and large household products. I usually move to BC flute, double-wall board, or extra structural supports. I do not trust thin board for these loads, even if the first sample looks acceptable.

Product Group	Examples	Common Board Choice	Key Risk
Light	Cosmetics, phone accessories	E flute, B flute	Poor print or weak small tabs
Medium	Packaged food, household goods	B flute, C flute, EB flute	Shelf bending
Heavy	Beverages, pet food, bulk packs	BC flute, double-wall board	Collapse during shipping or retail use

Shelf Span and Load Distribution

I do not judge weight only by total kilograms. I also check how the weight sits on the display. A shelf with a long open span may bend even when the total load looks reasonable.⁶ A short shelf with dividers may support more weight because the load transfers better into the side panels.

I also look at dynamic loading. Store staff may drop products into a display during replenishment. A customer may press down on a shelf. A pallet display may receive side force during transport. These moments add stress beyond the static product weight.

That is why I use safety factors. I prefer a board and structure that can handle more than the expected load.⁷ I do not want the display to survive only in perfect lab conditions. I want it to survive real warehouses, trucks, stores, and people.

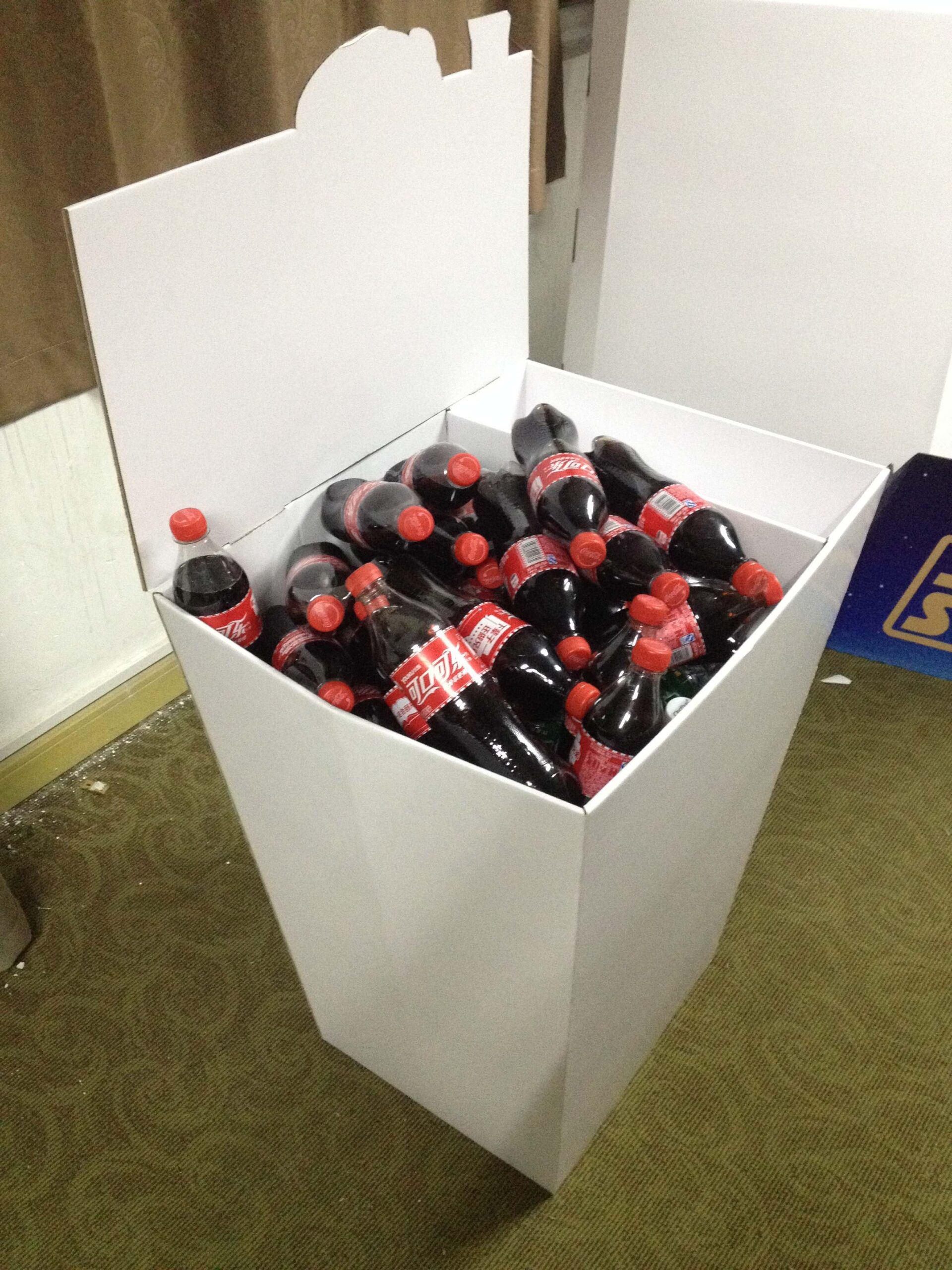

Which Strength Tests Matter When Choosing Board Grade?

I believe test data should support every serious display decision. A board that “feels strong” is not enough for a major retail program.

The most useful strength tests for corrugated displays are ECT, BCT, burst strength, and flat crush resistance.⁸ I use these tests to judge stacking strength, compression load, rupture resistance, and flute durability.

ECT, BCT, Burst, and Flat Crush

I use Edge Crush Test, or ECT, to understand edgewise compression strength. It helps me judge how well a display or carton may handle stacking load. Common ECT ratings include 32 ECT, 44 ECT, 48 ECT, and 51 ECT. A higher number usually means stronger edge compression, but I still check the full design.

I use Box Compression Test, or BCT, when shipping and warehouse stacking are important. It tells me the maximum compression load before the structure fails. This matters for pallet displays, club-store displays, and long-distance export projects.

Burst strength measures resistance to rupture. It matters when products are heavy or when handling is rough. Flat crush resistance measures how well the flute resists deformation. It matters for shelves, counter displays, and repeated handling.

Test	What It Measures	Why I Use It
ECT	Edge compression strength	I judge stacking and vertical strength
BCT	Full structure compression	I check shipping and warehouse pressure
Burst strength	Rupture resistance	I check rough handling risk
Flat crush	Flute deformation	I check shelf and surface durability

Why Thickness Alone Can Mislead You

I do not select board by thickness alone. A thicker board with weak liner can perform worse than a thinner board with better fiber and better flute structure.⁹ I also know that poor bonding can reduce performance, even when the board grade looks correct on paper.

I check the final display structure because material tests do not replace engineering judgment. A shelf with poor locking tabs may fail. A display with weak side panels may lean. A dump bin without proper reinforcement may bulge after loading. The board grade is one part of the system, not the whole system.

I also consider humidity. Moisture can reduce board strength in a serious way. A display shipped by ocean freight may face changing temperature and moisture for weeks.¹⁰ So I may choose a stronger board or add coating, stronger liner, or better packing when the route has higher moisture risk.

How Do Shipping and Retail Conditions Affect Board Choice?

I have shipped displays across oceans, and I know a display does not live only in a clean showroom. It must survive the supply chain first.

Shipping conditions, warehouse storage, humidity, and retail replenishment can weaken or damage displays.¹¹ I choose stronger board grades and verified structures when displays face ocean freight, long storage, heavy stacking, or repeated product loading.

From Factory To Store Floor

I treat the supply chain as part of the design brief. A display may leave our factory in Dongguan, move into a container, cross the ocean, sit in a distribution center, and then move to a retail store. Each step adds pressure.

Ocean freight can create long compression loads. Cartons may be stacked for weeks. Warehouse storage can also create pressure, especially when pallets are stacked or moved often. Humidity can weaken paper fibers and reduce compression strength. Retail replenishment adds repeated hand pressure and product impact.

I also consider retailer rules. Walmart, Target, Costco, Sam’s Club, Lowe’s, and other large retailers often have display requirements. Some projects need ISTA-related transport validation. Some need pallet fit, forklift access, or strict size control. I cannot select board in isolation.

Supply Chain Stage	Main Stress	Board Selection Concern
Ocean freight	Long compression and humidity	I may increase ECT or use stronger liner
Warehouse storage	Stacking and pallet movement	I check BCT and pallet layout
Store setup	Handling and assembly	I check folds, locks, and edges
Replenishment	Repeated loading	I check shelf support and flat crush

Why I Use Prototypes and Testing

I trust prototypes because paper behavior can surprise people. A drawing may look perfect, but the sample may reveal weak shelves, hard assembly, bad leaning, or poor load transfer. I test the sample with real product weight whenever possible. I also test how the display behaves after loading, moving, and unloading.

For export display projects, I prefer to validate packaging through transit testing when the program is large or the retailer requires it. ISTA-style testing helps us see vibration, compression, drop, and handling risks before mass production. It is much cheaper to fix a prototype than to fix thousands of failed displays after shipment.

At our factory, I connect board selection with structure design, print process, packing method, and test plan. This method helps me protect both the brand and the retailer relationship.

How Do I Choose the Right Board for Each Display Type?

I know many customers want one simple material answer. I can give a starting point, but I still need to match it to the exact display.

For counter displays, I usually consider E or B flute. For floor displays, I consider B, C, or EB flute. For dump bins, I consider C or BC flute. For pallet displays, I usually choose BC flute or double-wall board.

Practical Board Choices By Display Format

I use E flute for counter displays when print quality matters and product weight is low. A counter display sits close to the shopper, so surface quality is important. I use B flute when the display needs more rigidity or when the product is a little heavier.

For shelf-ready packaging, I often use B flute or E flute. I focus on easy opening, clean edges, shelf strength, and product presentation. If the pack tears badly during opening, the retail appearance suffers.

For floor displays, I often choose B flute, C flute, or EB flute. I look at height, shelf span, product weight, and campaign time. For dump bins, I prefer C flute or BC flute because side pressure can be high when products are loose. For pallet displays, I usually need BC flute or double-wall board because transport and club-store requirements are much tougher.

Display Type	Common Board Choice	My Main Priority
Counter display	E flute, B flute	Print quality and neat structure
Shelf-ready packaging	B flute, E flute	Easy opening and shelf look
Floor display	B flute, C flute, EB flute	Stability and load capacity
Dump bin	C flute, BC flute	Side pressure and durability
Pallet display	BC flute, double-wall	Heavy load and transport safety

How I Avoid Common Selection Mistakes

I avoid choosing material based only on cost. A cheaper board can become expensive if the display fails in store. I also avoid choosing based only on thickness. Strength ratings, liner quality, flute type, structure, and environment all matter.

I never ignore product weight. I ask for product dimensions, unit weight, total shelf load, and loading plan. I also ask where the display will be used. A short campaign in a dry indoor store has different needs from a warehouse club program with long transport and high handling pressure.

I also avoid overengineering. I do not want to use the heaviest board when a lighter board can do the job safely. Extra board can increase cost, freight weight, cutting difficulty, and assembly trouble. My goal is not maximum strength. My goal is the right strength, good print, safe transport, retailer compliance, and controlled cost.

How Do We Engineer Corrugated Board Displays at Packwins?

I do not believe a retail display should be guessed into production. I believe it should be engineered, sampled, tested, and controlled.

At Packwins, we select corrugated board through product weight review, structure design, load analysis, retailer compliance checks, material optimization, prototype testing, ISTA transit testing, and production validation.

Our Material Selection Process

I start with the product. I check weight, size, packing style, and how the shopper will take the product from the display. Then I check the retail channel. A Walmart floor display, a Target endcap, a Costco pallet display, and a small POS counter display do not need the same board.

Next, I work with our engineering team on structure. We look at shelf span, side panel support, header weight, base strength, and load path. We decide whether the board should be E, B, C, EB, BC, or another structure. We also decide if we need extra inserts, stronger shelves, hidden supports, or special packing.

Then we make a prototype. I want to see the display in real size. I want to load real products on it. I want to check assembly, leaning, shelf bending, and visual appearance. If the project is for export or a large retailer, I may also recommend transport testing.

Step	What We Check	Why It Matters
Product review	Weight, size, loading plan	I need the real load data
Structure design	Shelves, side panels, base	I need safe load transfer
Board selection	Liner, flute, ECT target	I need strength and print balance
Prototype	Assembly and load test	I need proof before production
Transit testing	Compression, vibration, handling	I need export reliability
Production control	Color, die-cut, bonding	I need repeatable quality

Why Certifications and Process Control Matter

We are based in Dongguan, Guangdong, and we have 15 years of export experience. I know international retail display work needs more than a good-looking sample. It needs stable production and clear quality control.

Our factory works with key certifications and standards, including BSCI, FAMA, ISO9001, ISTA transport testing capability, and G7 color certification. These systems help us control quality, color, safety, and shipping performance. They also help brand managers and retail buyers reduce risk when displays go to Walmart, Target, Costco, Sam’s Club, Lowe’s, and other large channels.

I also care about color and structure at the same time. A beautiful display that collapses is a failure. A strong display with poor print is also a failure for a brand launch. The right corrugated board connects both sides. It supports the product, protects the campaign, and presents the brand with confidence.

Conclusion

I choose the best corrugated board by matching strength, print, cost, transport, and retailer needs to the real display application.

---
