Thickness of Corrugated Cardboard And How to Choose for Retail Displays

Your display looks weak and flimsy on the retail floor. It might collapse under your product's weight, damaging your brand's image and sales. I'll help you fix that.

To choose the right cardboard thickness, you must match the material to your product's weight and the display's design¹. Consider the flute type (like B, E, or BC) and the paper weight (GSM). This ensures your display is strong, looks great, and lasts in the store.

Choosing the right material for a Point of Purchase (POP) display can feel overwhelming. I've seen many brands make costly mistakes by picking cardboard that's too weak or too thick for their needs. It's a balance between strength, cost, and appearance. But once you understand the basics, it becomes much easier. I'm here to walk you through everything I've learned over the years so you can make the best choice for your brand. Let's dive in and build a display that stands out for all the right reasons.

What is Corrugated Cardboard?

You see cardboard everywhere, but do you know what makes it so strong? It’s not just a thick piece of paper. I'll show you its clever, simple structure.

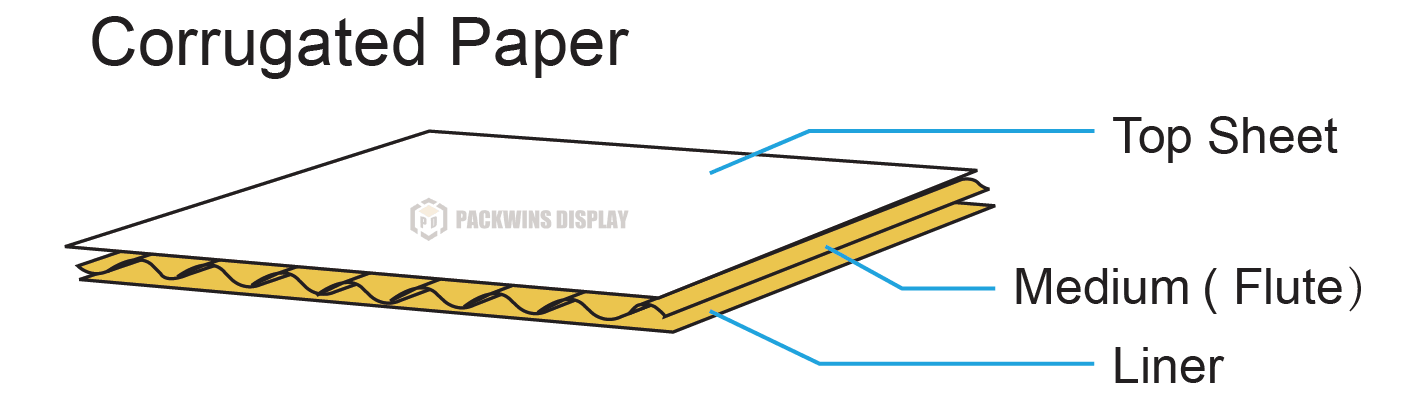

Corrugated cardboard is an engineered material made from a fluted (wavy) sheet of paper sandwiched between one or two flat linerboards². This "sandwich" design gives it remarkable strength and rigidity while remaining lightweight, perfect for retail displays.

When I first started in this business, I thought cardboard was just cardboard. I quickly learned that the real magic is in the construction. It’s a simple but brilliant invention. Think of it like an arch in a bridge. That wavy layer in the middle, which we call the "medium" or "flute," creates a series of connected arches. These arches are what give the board its strength and ability to support weight. The flat sheets on the outside, called "linerboard," provide the smooth surfaces for printing and keep the structure stable.

The Key Components

• Linerboard: This is the flat paper that makes up the outer surfaces of the board. It can be made from virgin pulp or recycled paper. The outer liner is often a higher quality for a better printing surface.
• Medium (Flute): This is the wavy, "corrugated" paper in the middle. The size and shape of these waves, or flutes, determine the board's thickness and performance characteristics.

This simple combination makes corrugated board incredibly versatile. It's light enough to ship easily but strong enough to hold heavy products.

How to Read Box Dimensions Correctly?

Ordering the wrong size display is a frustrating and costly mistake. Dimensions can be confusing, but I'll show you the simple industry standard so you get it right every time.

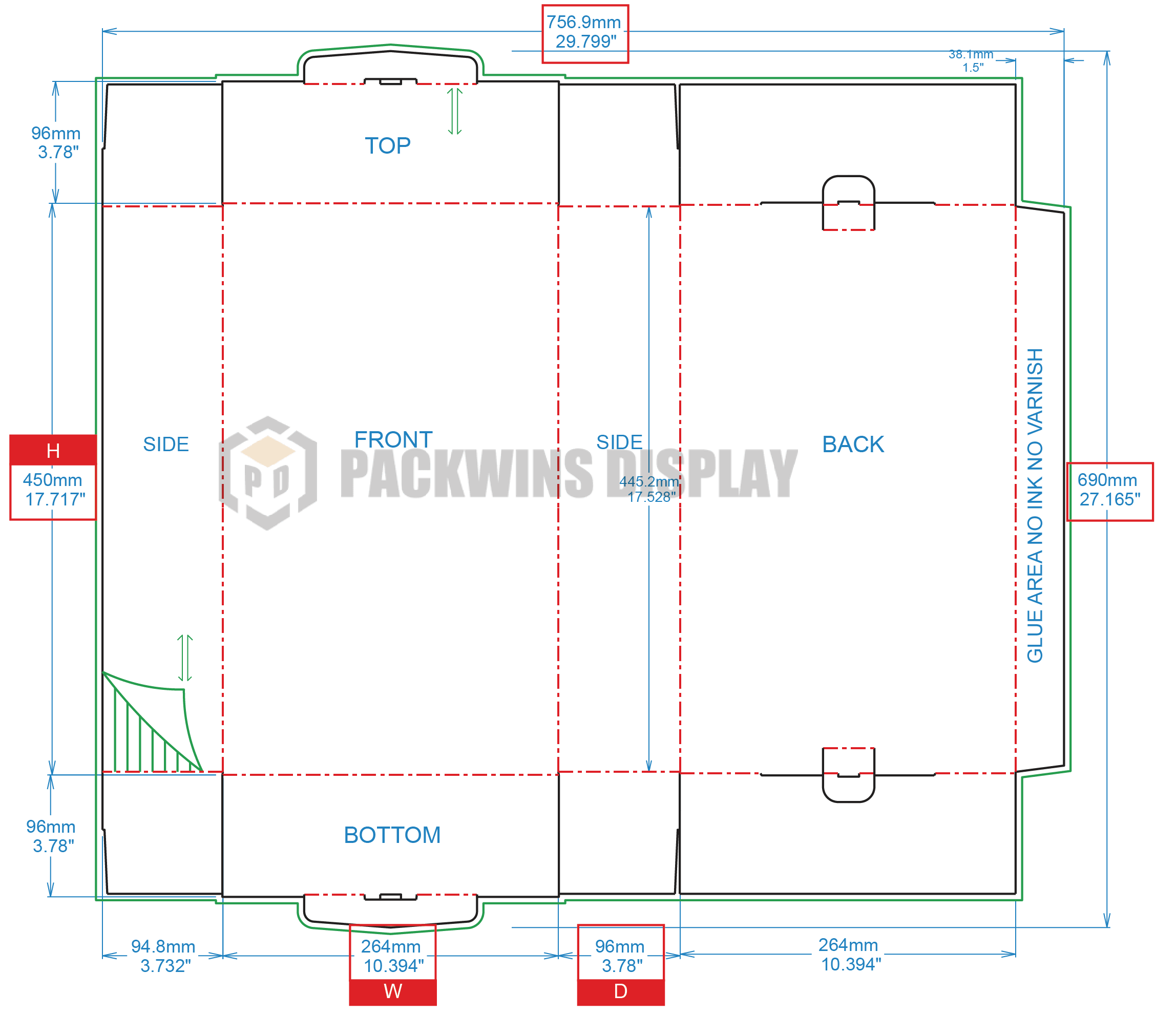

Always measure the inside of the box or display³. The correct format is always Length x Width x Depth (or Height). Length is the longest side with a flap, and Width is the shorter side with a flap. This ensures your products fit perfectly.

I remember a client who gave us outside dimensions for a PDQ tray. When the trays arrived, their products were too squeezed to fit properly. We had to rush a new order. It was a stressful lesson for them, but it highlights why this detail is so important. The thickness of the cardboard itself takes up space. If you measure the outside, you aren't accounting for the space the material occupies.

The L x W x D Rule

• Length (L): When you look at the top opening of the box, this is the longer of the two sides.
• Width (W): This is the shorter side when looking at the top opening.
• Depth (D) / Height (H): This is the distance from the top opening to the bottom of the box.

For a retail display, these principles are the same, but we apply them to different components. For a shelf, we measure its length, width, and the height of its front lip. For the overall display, we measure its total footprint (L x W) and its total height. Always think from the inside out to guarantee a perfect fit for your products.

How to Understand Structure of a POP Display?

A display is much more than a box. It has shelves, headers, and supports. Understanding its structure is the key to choosing the right material for strength and stability.

A POP display has several key structural parts⁴. The base provides stability, shelves hold product weight, and the backer and header are for branding. Each part may need different cardboard thicknesses to function correctly.

When we design a display, we think like architects. The entire structure has to work together to handle the stresses of a busy retail environment, from shipping to stocking to shopping. If you use a thin material for a shelf meant to hold heavy bottles, it will sag and look terrible. If you use a super thick, heavy material for a small header card, you're just wasting money. It’s all about using the right material in the right place.

Key Structural Parts

Here's a breakdown of the main components of a typical floor display:

• Base: This is the foundation. It touches the floor and supports everything above it. It needs to be strong, stable, and often uses a thicker, more durable board like BC-flute, especially if it's a pallet display.
• Trays/Shelves: These are the most critical parts for holding product. The strength needed depends entirely on the weight they must support. We often use B-flute for its good strength-to-cost ratio, sometimes with reinforcements.
• Back Panel: This provides vertical support for the shelves and is a huge canvas for your marketing message. It needs to be rigid enough not to bend or warp over time.
• Header: This is the sign at the top. Its main job is to grab attention. Since it holds no product weight, it can be made from a lighter material like E-flute to save on cost and weight.

How Does Surface Paper Thickness Affect Your Display?

The outside of your display is the first thing your customers see. The paper's thickness directly affects print quality and durability. Let's see why this small detail is so important.

Surface paper thickness, measured in Grams per Square Meter (GSM), impacts print quality and the premium feel of your display⁵. A higher GSM means a thicker, smoother paper that produces sharper graphics and better color.

I've seen beautiful designs get ruined by printing on the wrong paper. You can have the best graphics in the world, but if you print them on thin, rough paper, the ink will bleed, the colors will look dull, and the whole display will feel cheap. For brands going into stores like Walmart or Target, a premium look is everything. Using a thicker, coated paper, like a 250 GSM art paper, makes your colors pop and your images look crisp. It sends a message of quality before the customer even touches the product.

Understanding GSM

Grams per Square Meter (GSM) is the standard measurement for paper weight and thickness⁶. It’s simple: it’s the weight of a one-meter by one-meter square of that paper.

GSM Value	Common Name	Typical Use for Displays
150-180 GSM	Standard Paper	Economical choice for inner liners or displays with simple graphics.
200-250 GSM	Art Paper / Card	The sweet spot for most POP displays. Gives excellent print quality.
300+ GSM	Heavy Cardstock	Used for premium packaging or structural elements that need to be rigid.

Choosing the right GSM is a balance. A higher GSM costs more, but it also delivers a much better result. We almost always recommend at least a 250 GSM coated paper for the printed surface of our displays to ensure our clients' brands look their absolute best.

What Are the Different Types of Corrugated Board?

Not all corrugated cardboard is created equal. There are different styles and flute sizes. Choosing the wrong one can lead to a display that fails. I'll explain the main types.

The main types are single face, single wall, double wall, and triple wall⁷. For displays, single wall is most common for its versatility. Double wall is used for heavy-duty displays that need extra strength.

The "wall" refers to the number of fluted layers. The more walls, the stronger, more rigid, and more cushioned the board is. It’s rare to use anything beyond a double wall for a retail display, as triple wall is typically reserved for heavy industrial shipping containers. The key is knowing when to step up from a single wall to a double wall.

Corrugated Board Styles

• Single Face: This is just one sheet of linerboard glued to one sheet of fluted medium. It's flexible and often comes in a roll. We use it for protective wrapping inside a display package, not for structure.
• Single Wall Board: This is the classic sandwich: a fluted medium glued between two sheets of linerboard. This is the workhorse of the display world. It provides a great balance of strength, printability, and cost.
• Double Wall Board: This is like two single walls combined. It has two fluted mediums and three linerboards. This construction makes it much stronger and more resistant to stacking pressure. We use this for pallet displays or shelves holding very heavy items like beverages or hardware.
• Triple Wall Board: This is the strongest of all, with three flutes and four liners. It's an amazing material but is generally overkill and too expensive for a temporary retail display.

For 90% of the displays we produce, we use a single wall board. But for that 10% that will be holding a lot of weight, upgrading to a double wall is a smart investment that prevents failure in the store.

How to Choose the Right Corrugated Thickness for POP Displays?

Now, let's put it all together. You know the parts and the materials. I'll give you a simple guide to choosing the right thickness based on what your display needs to do.

For POP displays, match the flute type to the job⁸. Use E-flute for high-graphics counter displays⁹. B-flute is a great all-rounder for floor displays¹⁰. Use strong BC-flute for heavy-duty pallet displays or dump bins¹¹.

The "thickness" of corrugated board is really determined by its flute profile. The flute is the wavy paper in the middle, and different sizes (or profiles) give the board different properties. A client once wanted to make a large pallet display for heavy bags of pet food using B-flute. I knew it wouldn't be strong enough. I convinced them to upgrade to a BC double wall. It cost a little more, but the display was rock-solid in Costco and they sold out in weeks. That’s the power of choosing the right material.

Common Flute Types for Displays

Here is a simple table to guide your choice.

Flute Type	Thickness (Approx.)	Characteristics	Best For...
E Flute	1.5 mm	Very thin, excellent print surface, good crush resistance	Counter displays, small boxes, high-graphics displays
B Flute	3 mm	The workhorse. Good balance of strength and printability.	Floor displays, PDQ trays, shelves holding moderate weight.
C Flute	4 mm	Good stacking strength, very common for shippers.	Less common for high-graphic displays, used for structure.
BC Flute	7 mm	Double wall. Very strong, great for stacking.	Pallet displays, dump bins, displays for heavy products.
BE Flute	4.5 mm	Double wall. Strong with a good E-flute print surface.	Heavy-duty displays that also need high-quality graphics.

Think about the total weight on each shelf and the environment it will be in. A small, light cosmetic display can be made entirely of E-flute. A floor display for snacks will likely need B-flute. And that big display for drinks or canned goods absolutely needs the power of a double wall like BC-flute.

Conclusion

Choosing the right cardboard thickness is crucial¹². By understanding flutes, paper weight, and display structure, you can create a strong, beautiful display that successfully represents your brand in any store.

---
